AIW26B Active In-Wall Speaker
120 W Bass (Class AB) + 120 W Treble (Class AB)
39 Hz - 25 kHz (-6 dB)
Accuracy of Frequency Response
± 2.5 dB (45 Hz - 21 kHz)
8.7 kg / 19.2 lb
1 x RCA Analog Input
1 x XLR Analog Input
AIW26B Active In-Wall Speaker
The AIW26B offers the same exceptional sound quality as its smaller AIW25 sibling, but with a more generous SPL capability and low frequency extension - making it the natural choice for larger spaces.
45 Hz - 21 kHz (± 2.5 dB)
Low cutoff -6dB
High cutoff -6dB
Peak SPL Maximum peak acoustic output per pair with music material.
Maximum peak acoustic output per pair with music material.
Short term max SPL Maximum short term sine wave acoustic output at 1 m on axis in half space, averaged from 100 Hz to 3 kHz.
Maximum short term sine wave acoustic output at 1 m on axis in half space, averaged from 100 Hz to 3 kHz.
8.7 kg (19.2 lb)
> 200 Hz ≤0.5 %
120 W Class AB
4.6 kg (10.1 lb)
120 W Class AB
4.6 kg (10.1 lb)
100-240 VAC 50/60Hz
Signal processing section
Input RCA female input, unbalanced 10 kOhm.
RCA female input, unbalanced 10 kOhm.
Input XLR female input, balanced 10 kOhm.
XLR female input, balanced 10 kOhm.
For even more technical details please see product operating manual.
Outstanding sonic performance
Designed for state-of-the-art audio installations, the elegant, discreet appearance of the AIW26B complements its outstanding sonic performance. Providing clean, transparent audio reproduction, the AIW26B will integrate seamlessly into a standard 2” x 4” wall system in either new or retro-fit installations. Its grille and mounting frame can be painted to match any interior design, blending discreetly into home theatres, restaurants, art galleries, museums or boardrooms – where it will provide decades of reliable service.
Get more active
Genelec’s active approach means that both drivers in the AIW26B are powered by the remote mounting individually calibrated RAM1 amplifier module, thus avoiding any issues with amplifier/speaker matching. The RAM1 features Room Response Controls for optimising the frequency response of the AIW26B to match any acoustic environment, delivering transparent and uncoloured performance, even in challenging spaces.
Directivity Control Waveguide (DCW™) Technology
Room Response Compensation
Active crossover operating at low signal levels.
Audio electronic crossovers allow to split the audio signal into separate frequency bands that can be separately routed to individual power amplifiers which then are connected to specific transducers optimized for a particular frequency band.
Active crossovers come in both digital and analogue varieties. Genelec digital active crossovers include additional signal processing, such as driver protection, delay, and equalization.
Genelec analogue active crossover filters contain electronic components that are operated at low signal levels suitable for power amplifier inputs. This is in contrast to passive crossovers that operate at the high signal levels of the power amplifier's outputs, having to handle high currents and in some cases high voltages.
In a typical 2-way system the active crossover needs two power amplifiers — one for the woofer and one for the tweeter.
The active crossover design offers multiple benefits:
- The frequency response becomes independent of any dynamic changes in the driver's electrical characteristics or the drive level.
- There is an increased flexibility and precision to adjust and fine tune each output frequency response for the specific drivers used.
- Each driver has its own signal processing and power amplifier. This isolates each driver from the drive signals handled by the other drivers, reducing inter-modulation distortion and overdriving problems.
- The ability to compensate for sensitivity variations between drivers.
- The possibility to compensate for the frequency and phase response anomalies associated with a driver’s characteristics within the intended pass-band.
- The flat frequency response of a high-quality active loudspeaker is a result of the combined effect of the crossover filter response, power amplifier responses and driver responses in a loudspeaker enclosure.
Using the active approach enables frequency response adjustments and optimization of the full loudspeaker system, placed in various room environments, without expensive external equalizers. The end result is a simpler, more reliable, efficient, consistent and precise active loudspeaker system.
Directivity Control Waveguide (DCW™) for flat on- and off-axis response.
A revolutionary approach was taken by Genelec in 1983 with the development of its Directivity Control Waveguide (DCW™) used at the time in an egg-shaped enclosure. The Genelec DCW technology developed and refined over more than 30 years greatly improves the performance of direct radiating multi-way monitors.
The DCW technology shapes the emitted wavefront in a controlled way, allowing predictable tailoring of the directivity (dispersion) pattern. To make the directivity uniform and smooth, the goal is to limit the radiation angle so that the stray radiation is reduced. It results in excellent flatness of the overall frequency response as well as uniform power response. This advanced DCW technology minimizes early reflections and provides a wide and controlled listening area achieving accurate sound reproduction on- and off-axis.
Minimized early reflections and controlled, constant directivity have another important advantage: the frequency balance of the room reverberation field is essentially the same as the direct field from the monitors. As a consequence, the monitoring system's performance is less dependent on room acoustic characteristics.
Sound image width and depth, critical components in any listening environment, are important not only for on-axis listening, but also off-axis. This accommodates not only the engineer doing his or her job, but also others in the listening field, as is so often the case in large control rooms.
DCW™ Technology key benefits:
- Flat on- and off-axis response for wider usable listening area
- Increased direct-to-reflected sound ratio for reduced control room coloration
- Improved stereo and sound stage imaging
- Increased drive unit sensitivity up to 6 dB
- Increased system maximum sound pressure level capacity
- Decreased drive unit distortion
- Reduced cabinet edge diffraction
- Reduced complete system distortion
Each transducer is driven by its own optimized amplifier.
In a typical 2-way loudspeaker system, the active crossover needs two power amplifiers — one for the woofer and one for the tweeter. The power amplifiers are connected directly to the drivers of an active loudspeaker, resulting in the power amplifier’s load becoming much simpler and well known. Each driver-specific power amplifier has only a limited frequency range to amplify (the power amplifier is placed after the active crossover) and this adds to the ease of design.
The active design principle offers multiple benefits:
- The power amplifiers are directly connected to the speaker drivers, maximizing the control exerted by the power amplifier’s damping on the driver’s voice coil, reducing the consequences of dynamic changes in the driver electrical characteristics. This may improve the transient response of the system.
- There is a reduction in the power amplifier output requirement. With no energy lost in the passive crossover filter components, the amplifier power output requirements are reduced considerably (by up to 1/2 in some cases) without any reduction in the acoustic power output of the loudspeaker system. This can reduce costs and increase audio quality and system reliability.
- No loss between amplifier and driver units results in maximum acoustic efficiency
- Active technology can achieve superior sound output vs. size vs. low frequency cut-off performance
- All loudspeakers are delivered as a factory aligned system (amplifiers, crossover electronics and enclosure-driver systems)
Sophisticated drive unit protection circuitry for safe operation.
When working in critical audio production environments it is essential that monitoring systems remain reliable and functional at all times. One of the main reasons behind Genelec’s excellent success in broadcasting environments is the reliability of our products and a key element behind the reliability is the internal protection circuitry found in all products since 1978.
The protection circuitry prevents driver failures by detecting signal levels, and in case of sudden peaks or constantly too high levels, taking the signal level down automatically. Of course this feature does not affect the sound quality in any way when working within the specifications of the loudspeaker, but only prevents inadequate input signals from breaking the loudspeaker.
Protection circuitry features and benefits:
- Reduces the output level when required, (e.g. when driver voice coil temperature reaches the safe limit) which highly improves the system reliability
- Appropriate protection circuitry design in every loudspeaker and subwoofer enables to maximise system output sound level.
Precise room response compensation for optimizing in-room performance.
The interaction between room acoustic and loudspeaker radiation is complex. Each room changes somewhat the monitor’s response in a unique way, e.g. reflective vs. damped rooms, or placement against a wall vs. on a stand away from the walls.
All Genelec loudspeaker systems feature room response adjustments to compensate for the room influences and retrieve a flat frequency response at the listening position.
Genelec analogue loudspeaker systems provide versatile Room Response Controls. They include (depending on models):
- Bass Roll-Off and Bass Tilt
- Treble Tilt and Treble Roll-Off
- Bass Level
- Midrange Level
- Treble Level
- Desktop Control
At low frequencies two main controls are provided. The Bass Tilt control, which acts as a shelving filter together with the Bass Roll-off control allowing you to optimize the low and very low frequency response of the system in different installations. Bass, midrange and treble level controls are provided in large systems. These controls allow to optimize the relative balance between the various pass bands.
The operating manual and datasheet of each loudspeaker contains a list of preferred room response control settings for different installations. These have been specified out of long practical experience and measurements of various kind of typical acoustic environments.
Smart Active Monitor (SAM™) Systems
Genelec SAM Systems offer a comprehensive, solution-oriented, intelligently networked product range which all feature Genelec Loudspeaker Manager (GLM™) software and its automatic calibration system called AutoCal™.
Genelec AutoCal provides the industry’s first integrated process for complete automated measurement, analysis, and adjustment of every monitor on the GLM control network. The system measures the response in the listening area and applies relevant compensation in the low and low-mid frequencies to minimise the detrimental room acoustic anomalies as well as the differences between various listening positions. AutoCal also aligns relative levels, time-of-flight, as well as adjusts correct crossover phase (called AutoPhase) for all subwoofers on the network.
The Acoustic Response Editor provides accurate graphical display of the measured response, filter compensation and the resulting system response for each monitor, with full manual control of acoustic settings.
Where to Buy?

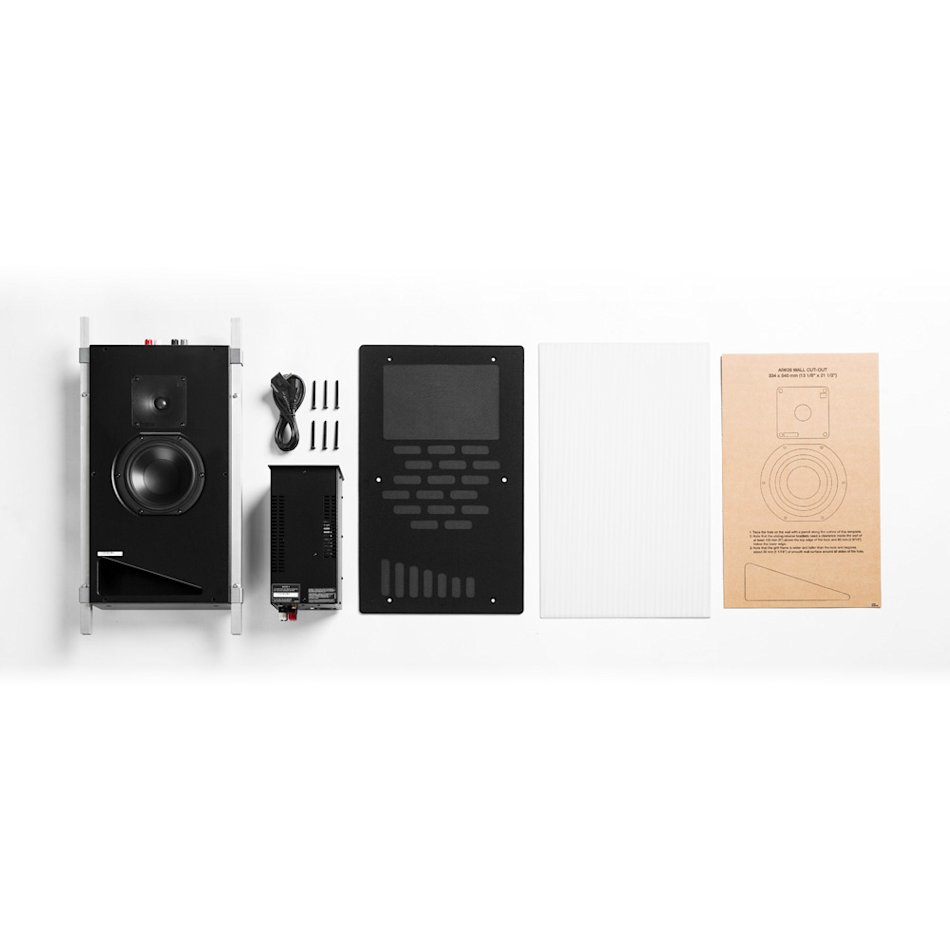

1 x AIW26B loudspeaker
1 x grille
1 x AIW26B cardboard cut-out template
1 x mains cable 1,8 m
1 x RAM1 amplifier unit
1 x plexiglass cover for the control switches
1 x cable pinding post tool
2 x 4-position terminal block
1 x operating manual
