Behind ‘The Times’ Tour: The Art of Live Audio Streaming
The event was mixed in both stereo and 5.1.4 Dolby Atmos, with Genelec 8351s handling the stereo mix duties and five 8340s, four 8330s and one 7370 subwoofer providing the Atmos mix, which was then streamed live to millions of viewers across China.
For years, Mr. Li Jun has been recording and mixing all of Wang’s albums, and Li was also responsible for mixing the Beijing concert too.

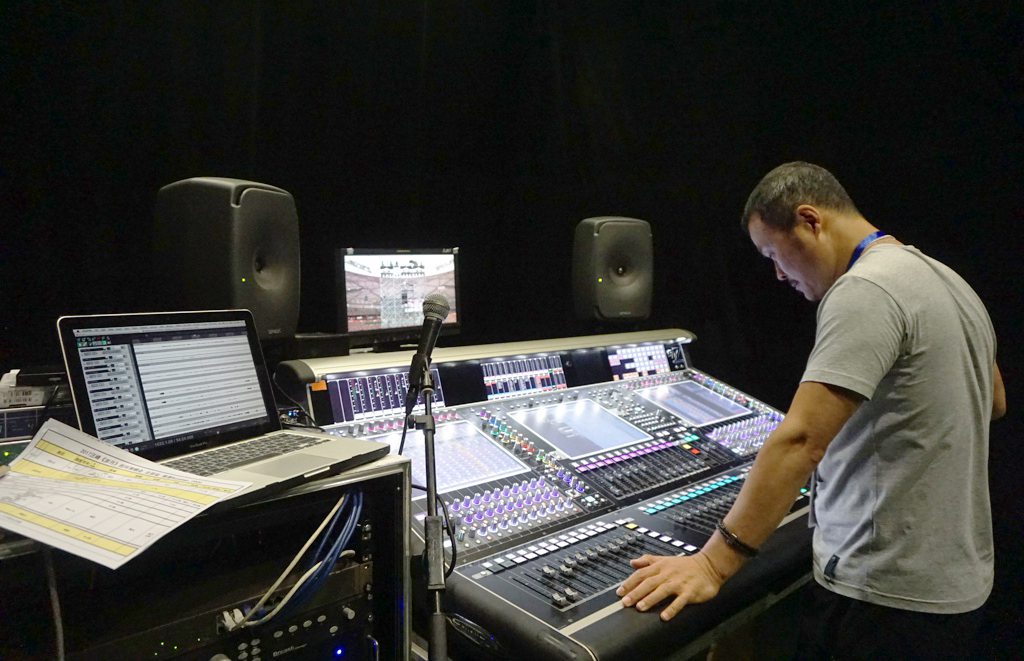

Picture: Li Jun, mixing engineer
Comparing the different approaches to live streaming and album mixing, Li commented that he aimed to bring the sound of the live stream as close as possible to CD quality, but adopted a different approach to the reverberant spaces which needed to remain "live".
In terms of work flow, Li recorded a multi-track of the band’s pre-show rehearsals, which he then used to fine-tune the actual concert mix. Storing a snapshot for each song ready for the show, Li then mixed in real time according to the musician’s individual performance, actual microphone position and the ‘feel’ of the show on the night.

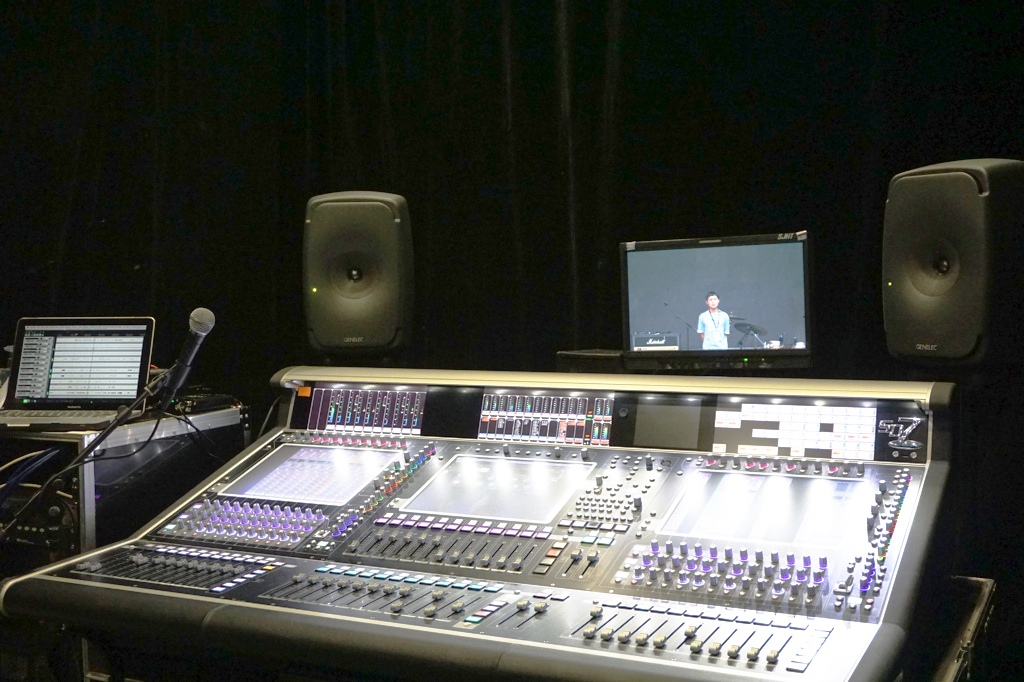

Picture: Genelec SAM 8351 for stereo mixing
As a long-time user of the classic Genelec 1038 and 1031 monitors in the studio, and 8340 SAM monitors during live stream mixing, Li was impressed with the 8351 monitors used on Wang’s tour. For him, the 8351’s major advantage is its large sweet spot, since when mixing live, engineers are often required to move around the console and outboard rack, meaning they are regularly off-centre. The coaxial point source design of the 8351 means that the imaging is consistent across a wide area, enabling the engineer to make accurate mix decisions even when outside the ‘traditional’ narrow sweet spot.
Dolby Atmos Mixing
Mr. Zhang Yan led the team responsible for the Dolby Atmos mix of the live show, along with mix engineer Mr. Lou Wei and system engineer Mr. Wang Yufei.
Zhang’s team have been pioneers in Dolby Atmos mixing ever since the first series of The Voice of China back 2012, since which the team have been responsible for delivering the Dolby Surround and Dolby Atmos mixes for several big variety shows, concert tours and sports events.
Dolby’s new Atmos technology gives audio engineers greater freedom to explore, and one of its major advantages is in creating mixes that are closer to the real-life listening experience, presenting the full emotional and spatial range of a live performance to the audience. Lou Wei revealed that, unlike traditional stereo audio mixing, he tries to place different elements in the rear and height channels when panning.

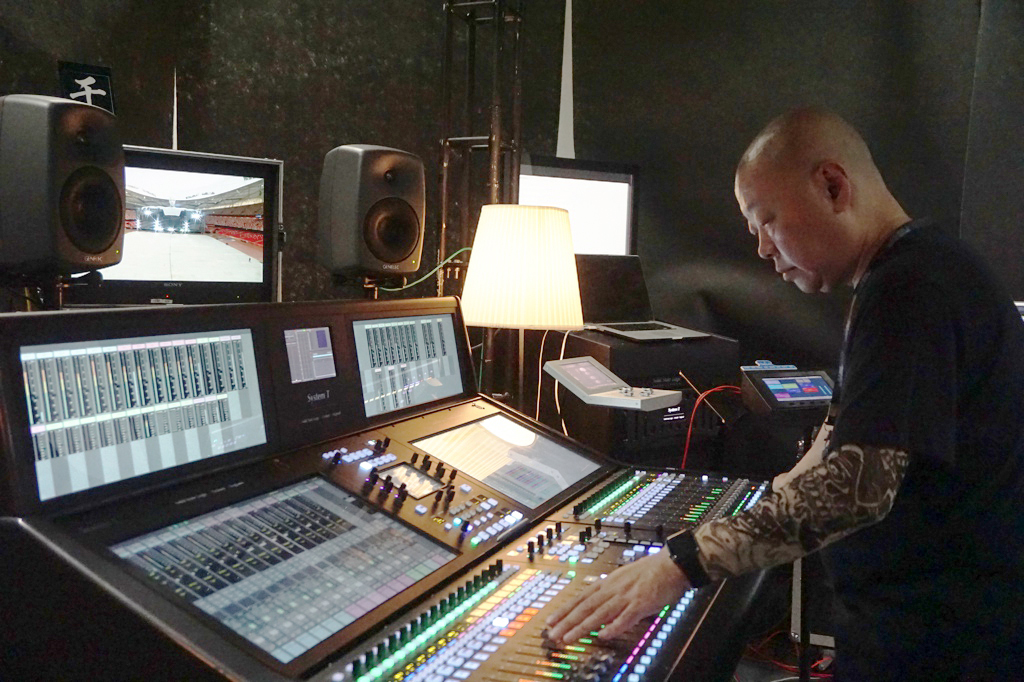

Picture: Lou Wei, the mixing engineer
The freedom that Atmos brings also comes with challenges, and Lou is particularly careful when using the height loudspeakers: "Although we have this powerful technology, the point is to create a naturally enveloping listening experience, instead of simply putting something into the 'sky'. If a height speaker shuts down suddenly, the audience will notice immediately that something is missing." he says.

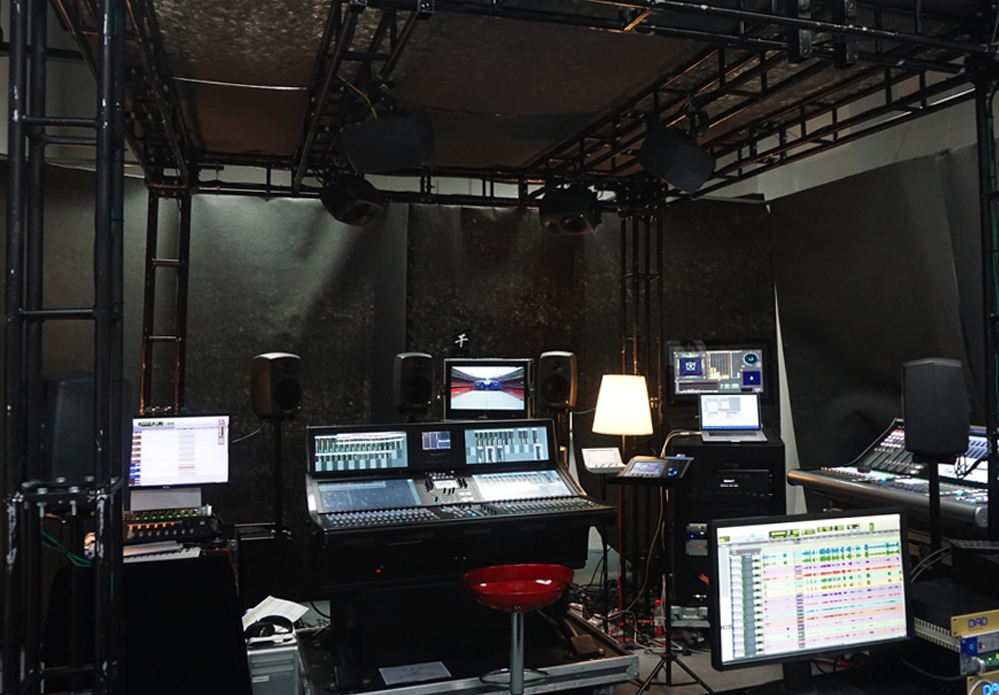

Picture: Dolby Atmos 5.1.4 set up with 5 x 8340s, 4 x 8330s, 1 x 7370 and 1 x 9301 AES/EBU interface

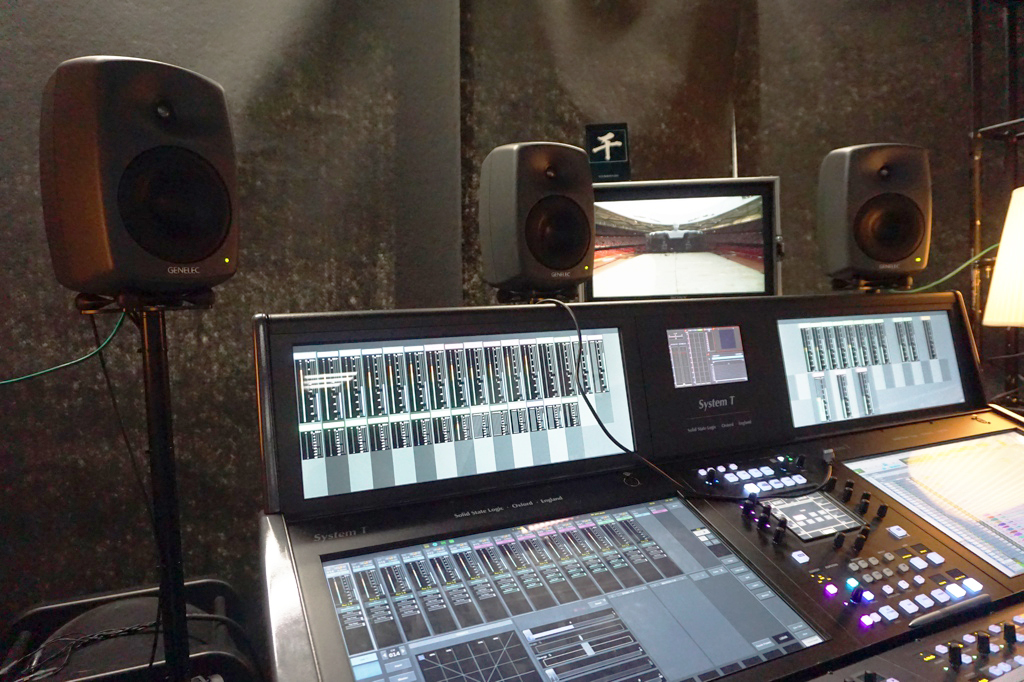

Picture: Genelec 8340 for L, C, R

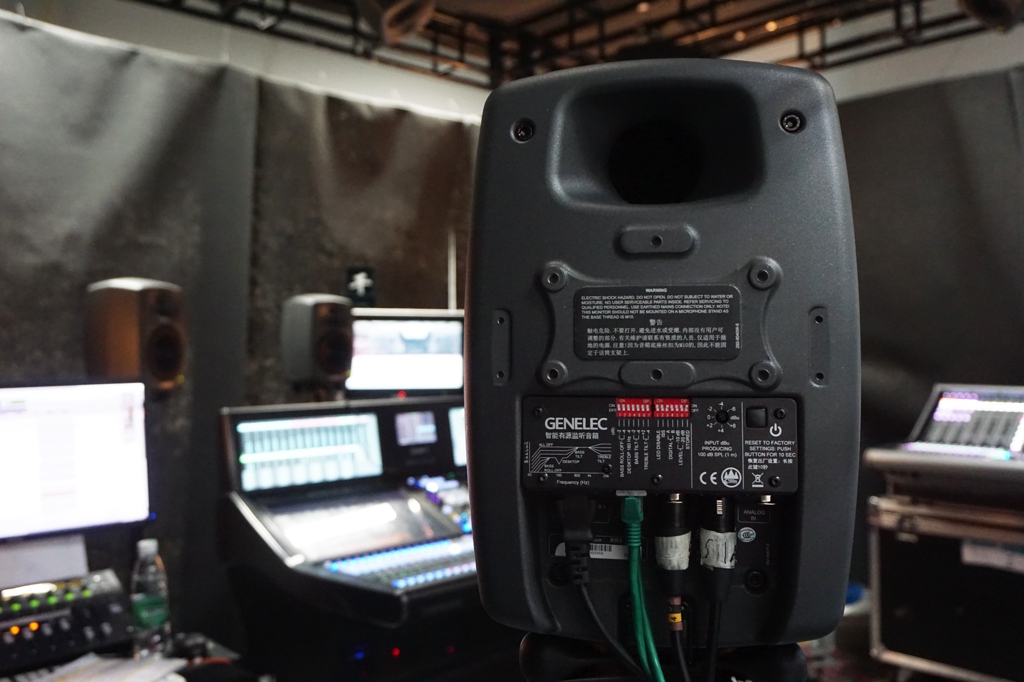

Picture: Genelec 8340 for Ls, Rs

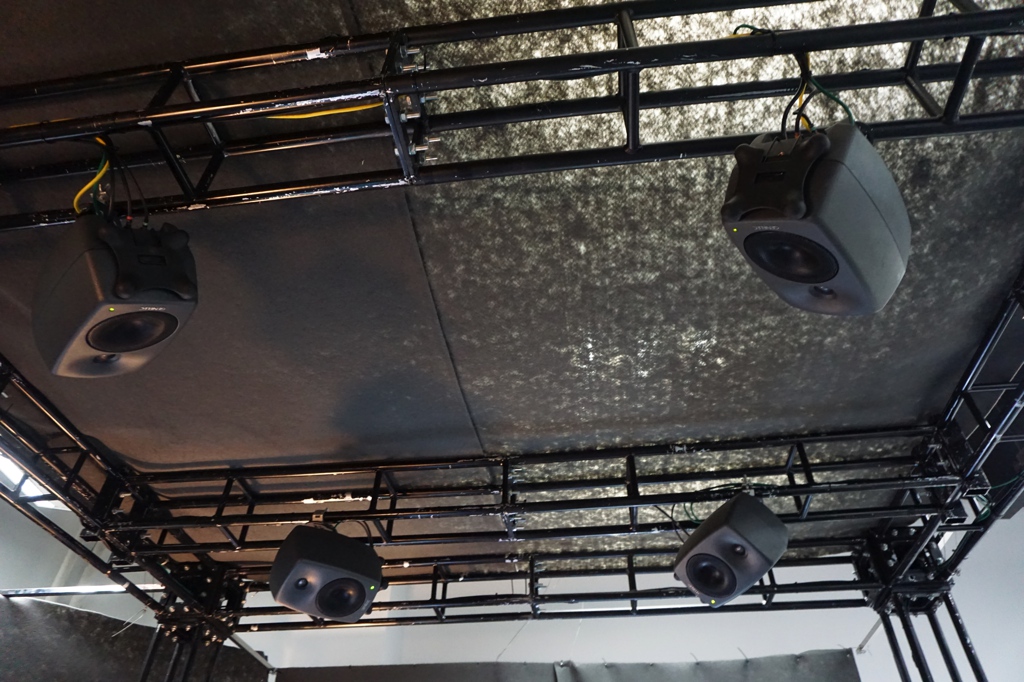

Picture: Genelec 8330 on the top

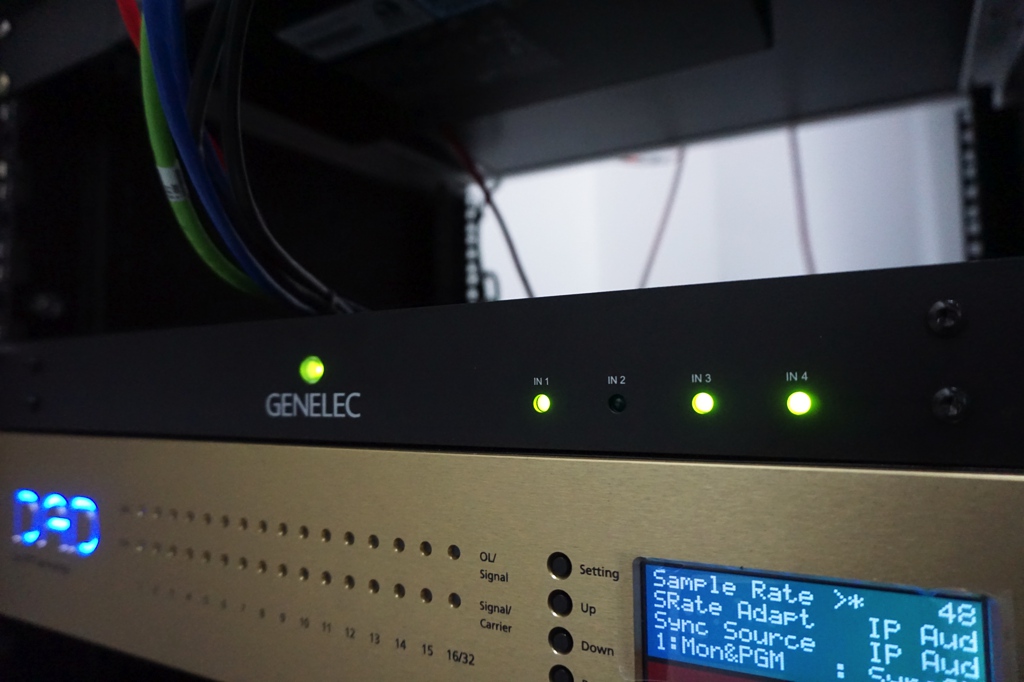

Picture: Genelec 9301 AES/EBU interface
"Besides trying to extend different musical elements to the back and the top, we can also use the height loudspeakers to produce some novel moving sound effects within the music. These creative movements, of course, should be executed according to the music. After all, to keep producing a moving sound effect on the top would be boring: so what we do is to produce the right effect - at the right time - only after we understand the different elements within the music. We don’t have a fixed principle, we just try!" he concluded modestly.
Watching and Listening

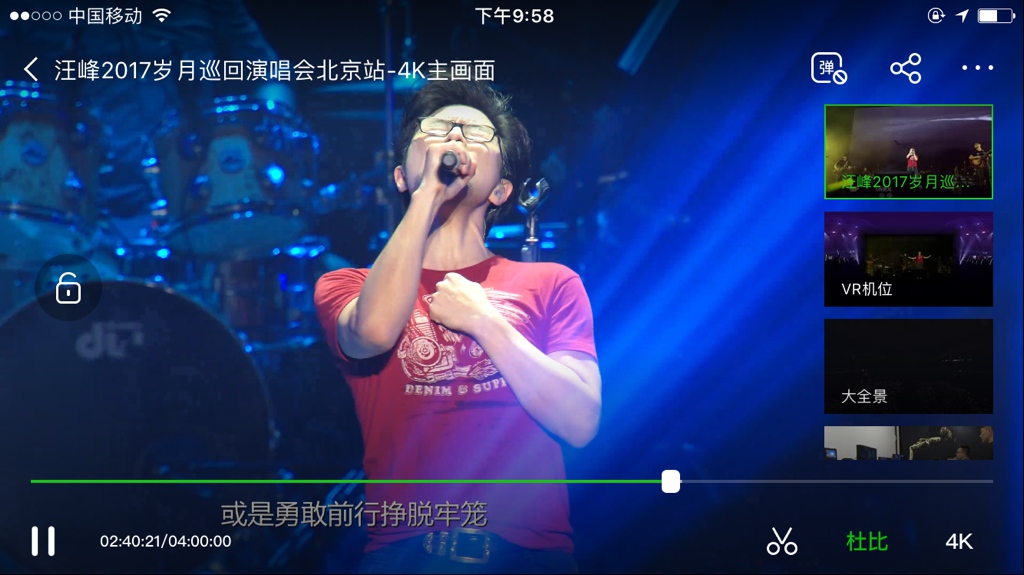

According to Zhang Yan from Dolby, in the past year his team have been responsible for the recorded broadcasting and live Atmos streaming of TV shows, concert tours and sport games including the Voice of China, the final of singing contest Super Boy, BiBi Zhou's concert Boom!, Faye Wong’s Moments Live 2016 Concert and AFC Championship Games, typically consumed through new media channels such as mobile networks and set-top boxes.
In recent years, the audio production of TV and on-line shows and programs has improved significantly – a testament to the incredible behind-the-scenes work of broadcast audio professionals everywhere. Genelec is excited to be part of this revolution, and is looking forward to seeing - and hearing - our monitors helping those professionals deliver increasingly exciting content to the public.

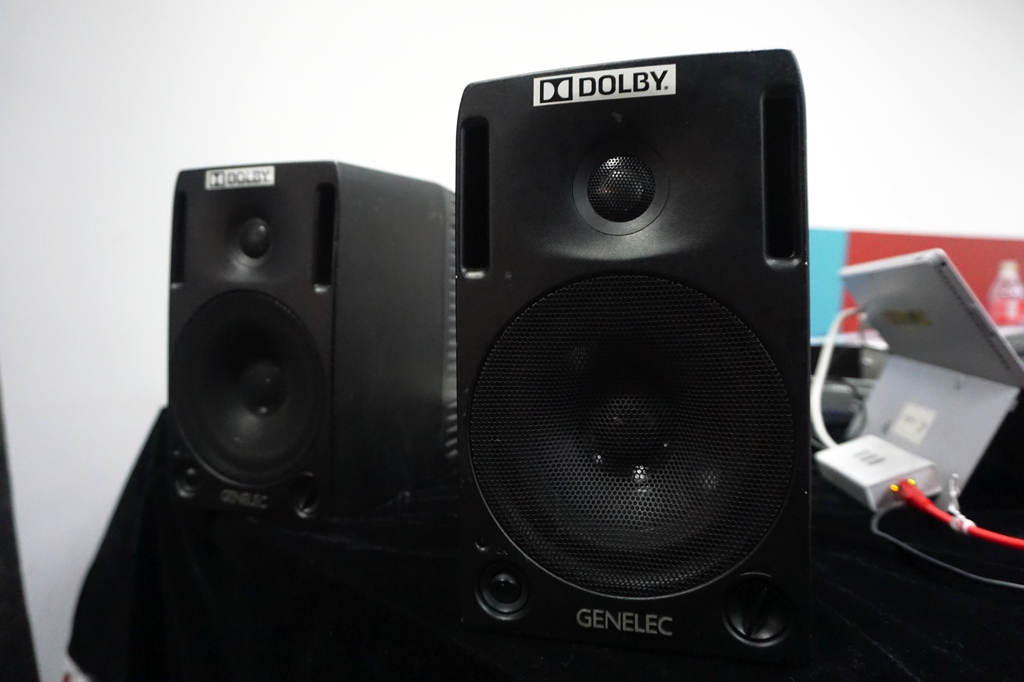

Picture: A pair of Dolby’s vintage Genelec 1029s: after many years of hard work, these are now employed as talkback loudspeakers.
THe Dolby Atmos 5.1.4 set up was created with the following products:
5 x 8340A SAM™ Studio Monitor
4 x 8330A SAM™ Studio Monitor
1 x 7370A SAM™ Studio Subwoofer
1 x 9301 AES/EBU interface
For stereo mixing:
8351 SAM™ Studio Monitors
