8341A

SAM™ Studio Monitor

High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance.

Smart Active Monitoring (SAM™) and GLM™ calibration technology

Minimum Diffraction Coaxial (MDC™) Driver Technology


SPL

110 dB

Frequency Response

38 Hz - 37 kHz (-6 dB)

Dimensions

H 370 x W 237 x D 243 mm, with Iso-Pod™ (view in inches)

Work faster, for longer

For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging - a main contributor to listener fatigue - is minimised.

Mixes that translate

As bigger brother to the super-compact 8331A, the 8341A offers increased LF extension and a higher SPL capability, so is ideally suited to slightly longer listening distances. In conjunction with our GLM calibration software, the 8341A will also compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully - every time.

Genelec

8341A SAM™ Studio Monitor White

8341A SAM™ Studio Monitor Dark Grey

8341A SAM™ Studio Monitor Black

8341A SAM™ Studio Monitor RAW

Color options:
Package contains:

1 x 8341A monitor
1 x mains cable 1,8 m
1 x RJ45 cable 5 m
1 x operating manual
1 x The Ones brochure

Warranty:
2 years parts-and-labour (extended to 5 years with free registration).

GLM Calibration:
Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.

Genelec

8341A SAM™ Studio Monitor White

8341A SAM™ Studio Monitor Dark Grey

8341A SAM™ Studio Monitor Black

8341A SAM™ Studio Monitor RAW

Color options:

Technical Specifications

SPL

110 dB

Amplifier Power

250 W Bass (Class D) + 150 W Midrange (Class D) + 150 W Treble (Class D)

Frequency Response

38 Hz - 37 kHz ("-6 dB")

Accuracy of Frequency Response

± 1.5 dB (45 Hz - 20 kHz)

Driver Dimensions

2 x H 90 x W 170 mm Bass + 90 mm Midrange + 19 mm Treble (view in inches)

Dimensions

H 370 x W 237 x D 243 mm, with Iso-Pod™ (view in inches)

Weight

9.8 kg / 21.6 lb

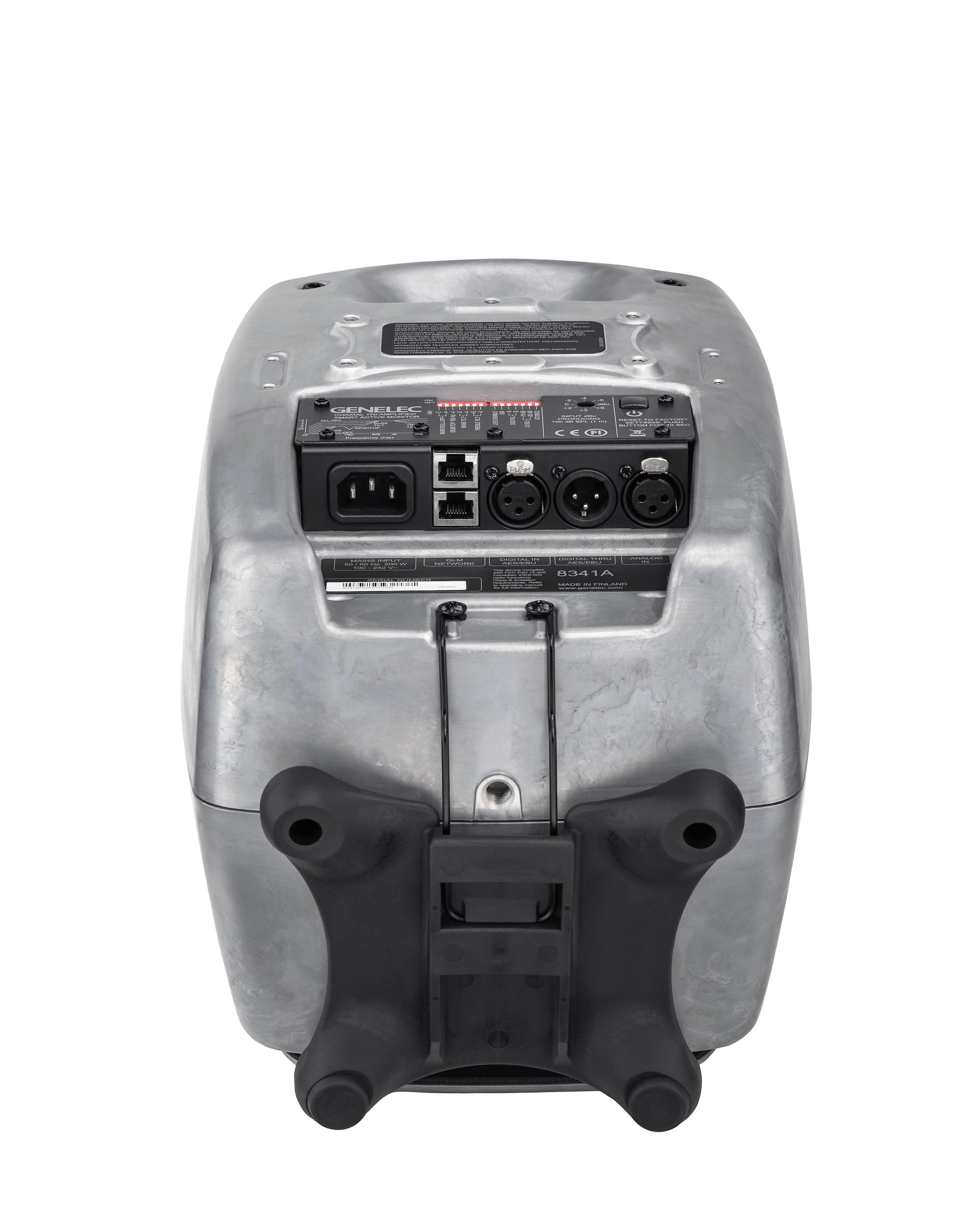

Connections

1 x XLR Analog Input

1 x XLR AES/EBU Input

1 x XLR AES/EBU Output

2 x RJ45 Control


Key Technologies

Smart Active Monitoring (SAM™) and GLM™ calibration technology

Minimum Diffraction Coaxial (MDC™) Driver Technology

Acoustically Concealed Woofers (ACW™) Technology

Active Crossovers

Directivity Control Waveguide (DCW™) Technology

Intelligent Signal Sensing (ISS™) Technology

Iso-Pod™ Stand

Minimum Diffraction Enclosure (MDE™) Technology

Optimised Amplifiers

Protection Circuitry

Reflex Port Design

Versatile Mountings
