Technical Specifications
SPL
122 dB
Amplifier Power
500 W Bass (Class D) + 250 W Midrange (Class D) + 200 W Treble (Class AB)
Frequency Response
29 Hz - 43 kHz ("-6 dB")
Accuracy of Frequency Response
± 1.5 dB (38 Hz - 20 kHz)
Driver Dimensions
⌀ 380 mm Bass + ⌀ 125 mm Midrange + ⌀ 25 mm Treble (view in inches)
Dimensions
H 810 x W 480 x D 420 mm, (view in inches)
Weight
54 kg / 119.0 lb
Connections
1 x XLR Analog Input
1 x XLR AES/EBU Input
1 x XLR AES/EBU Output
2 x RJ45 Control

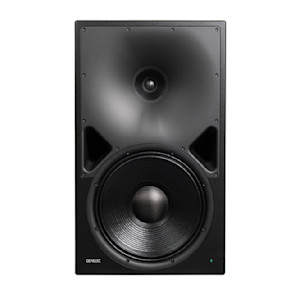

8380A Product Specifications
SAM™ Main Monitor
Technical Specifications
Engineered for the Truth – Uniting Power, Performance and Precision
With its pinpoint-precise coaxial driver, powerful 15-inch woofer and high SPL capability, the 8380A delivers exceptionally accurate imaging and neutral sound reproduction for professional studios and demanding high-fidelity listening environments.
System Specifications
Frequency Response
38 Hz - 20 kHz (± 1.5 dB)
Low cutoff -6dB
29 Hz
High cutoff -6dB
43 kHz
SPL
Peak SPL Maximum peak acoustic output per pair in a listening room with musical material @ 2 m.
≥124 dB
Short term max SPL Maximum short term sine wave acoustic output on axis in half space, averaged from 100Hz to 3 kHz @ 1 m.
≥122 dB
Long term max SPL Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) @ 1 m.
≥115 dB
Self-generated noise
Self-generated noise Self generated noise level in free space at 1 m on axis (A-weighted).
≤0 dB SPL
Weight
Weight54 kg (119.0 lb)
Dimensions
Height
810 mm
Width
480 mm
Depth
420 mm
Enclosure
Enclosure material
MDF
Enclosure type
Reflex port
Drivers
Driver type
Cone
8380A bass driver cone
Diameter
380 mm
Driver type
Coaxial
8380A Midrange Driver (coaxial cone)
Diameter
125 mm
Driver type
Coaxial
8380A Treble Driver (coaxial metal dome)
Diameter
25 mm
Directivity
Harmonic distortion
50...200 Hz ≤1 %
> 200 Hz ≤0.5 %
Amplifier Section
Amplifiers
500 W Class D
250 W Class D
200 W Class AB
Mains voltage
100-240 VAC 50/60Hz
Power consumption
ISS Active
≤0.5 W
Idle
≤21 W
Full output
750 W
Signal processing section
Connectors
Input Analog signal input connector XLR female, balanced 10 kOhm.
Input Digital signal input connector XLR female 110 Ohm
Output Digital signal output / Thru connector XLR male 110 Ohm
2 x Control Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Crossover
Bass/Mid
470 Hz
Mid/Treble
2500 Hz
