8361A

SAM™ Studio Monitor

The flagship of The Ones range, the 8361A offers the most advanced acoustic performance of any studio monitor on the planet.

Smart Active Monitoring (SAM™) and GLM™ calibration technology

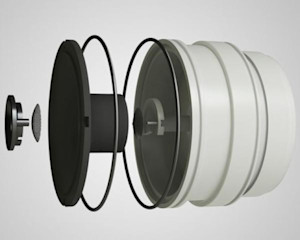

Minimum Diffraction Coaxial (MDC™) Driver Technology


SPL

118 dB

Frequency Response

30 Hz - 43 kHz (-6 dB)

Dimensions

H 593 x W 357 x D 347 mm, with Iso-Pod™ (view in inches)

An exquisite monitoring experience

The largest of our coaxial point source monitors, the 8361A offers extremely high dynamic range, unrivalled directivity and imaging and a short term SPL of 118 dB, enabling it to deliver an exquisite monitoring experience at any listening distance up to 5 metres – and therefore making it perfect for small to medium sized rooms.

Adapts to your space

The 8361A promotes faster and more consistent decision making, and also allows you to work reliably on longer sessions - because unnatural imaging, a main contributor to listener fatigue, is minimised. And by using it in conjunction with our powerful GLM calibration software, the 8361A will adapt to your acoustic space - compensating for any detrimental room influences and helping you produce mixes that translate perfectly, from stereo through to highly complex immersive formats.

Genelec

8361A SAM™ Studio Monitor Dark Grey

8361A SAM™ Studio Monitor Black

8361A SAM™ Studio Monitor White

Color options:
Package contains:

1 x 8361A monitor
1 x mains cable 1,8 m
1 x RJ45 cable 5 m
1 x operating manual
1 x The Ones brochure

Warranty:
2 years parts-and-labour (extended to 5 years with free registration).

GLM Calibration:
Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.

Genelec

8361A SAM™ Studio Monitor Dark Grey

8361A SAM™ Studio Monitor Black

8361A SAM™ Studio Monitor White

Color options:

Technical Specifications

SPL

118 dB

Amplifier Power

700 W Bass (Class D) + 150 W Midrange (Class D) + 150 W Treble (Class D)

Frequency Response

30 Hz - 43 kHz ("-6 dB")

Accuracy of Frequency Response

± 1.5 dB (36 Hz - 20 kHz)

Driver Dimensions

2 x H 137 x W 263 mm Bass + 130 mm Midrange + 25 mm Treble (view in inches)

Dimensions

H 593 x W 357 x D 347 mm, with Iso-Pod™ (view in inches)

Weight

31.9 kg / 70.3 lb

Connections

2 x RJ45 Control

1 x XLR Analog Input

1 x XLR AES/EBU Input

1 x XLR AES/EBU Output


Key Technologies

Smart Active Monitoring (SAM™) and GLM™ calibration technology

Minimum Diffraction Coaxial (MDC™) Driver Technology

Minimum Diffraction Enclosure (MDE™) Technology

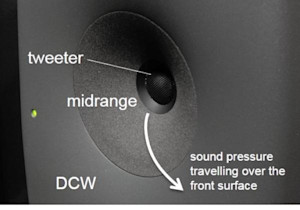

Directivity Control Waveguide (DCW™) Technology

Acoustically Concealed Woofers (ACW™) Technology

Protection Circuitry

Optimised Amplifiers

Reflex Port Design

Intelligent Signal Sensing (ISS™) Technology

Active Crossovers

Iso-Pod™ Stand

Versatile Mountings

Room Response Compensation
